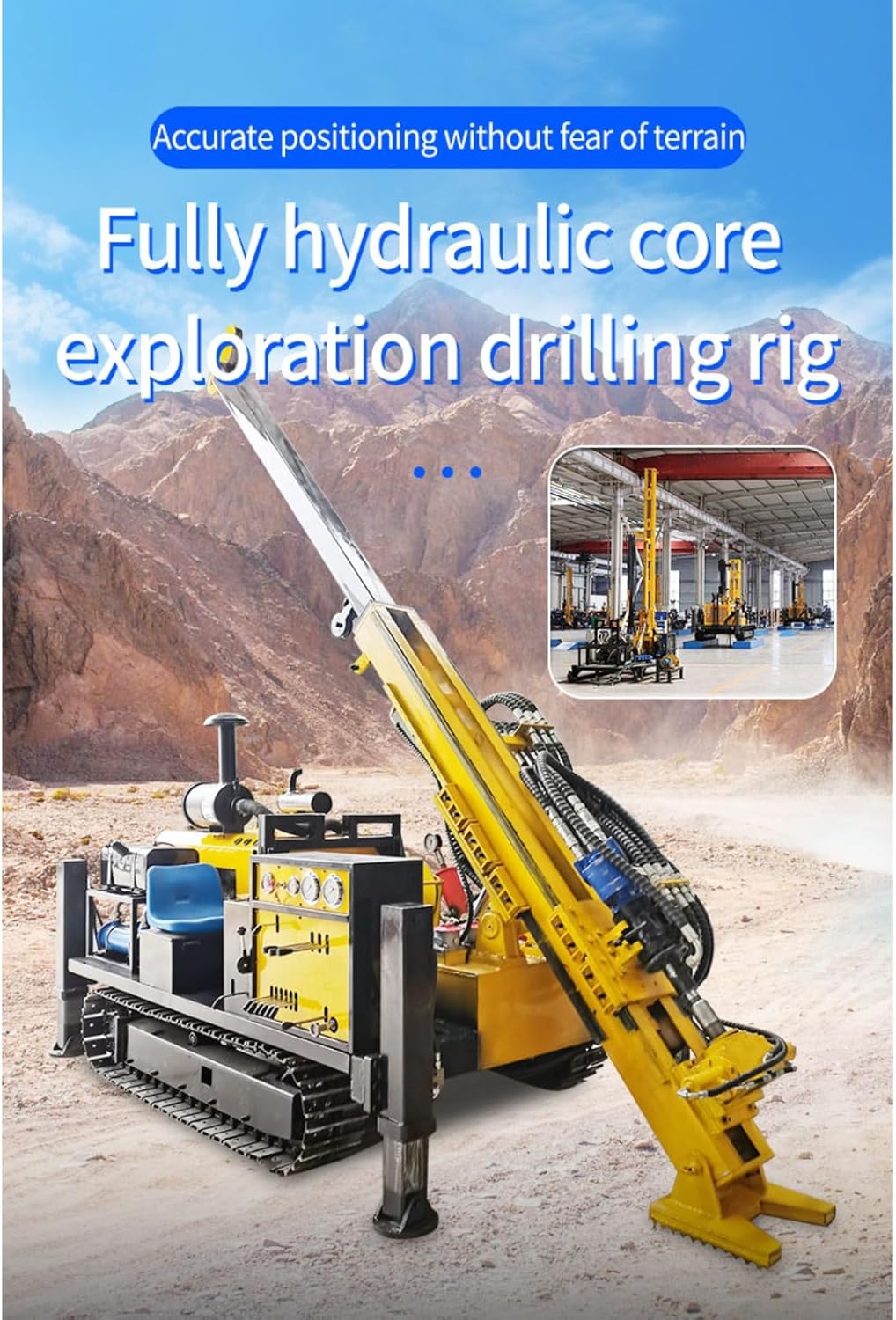

Full Hydraulic Core Drilling Rig Full Hydraulic Core Drilling Subsurface Extraction for Mining Drilling Mining Site Crawler Chassis Strong Power Mining Operators and Engineers

Product Name: Full Hydraulic Crawler Core Drilling Rig Type: Hydraulic Core Drill Rig Place of Origin: Henan, China Application: Mineral Exploration, Geotechnical Sampling, Geological Survey Warranty: 2 Years (Main Components) Drilling Diameter Range: 60-110 mm Max. Drilling Depth: 400 m Drill Pipe Length: 1.5 m Drilling Angle Range: 45° - 90° Main Engine Power: 75 kW Travel Speed: 2.5 km/h Climbing Ability: Up to 30° Overall Dimension (L*W*H): 4500*1950*2150 mm Overall Weight: 5.3 T Mobility: Crawler Mounted with Remote Control Key Features: Centralized console, hydraulic power head, compact body design. Highlights at a glance: Full Hydraulic Operation: The rig features full hydraulic control, delivering smooth, convenient, and highly responsive operation in all working conditions. Real-Time Parameter Adjustment: All key drilling parameters including rotational speed, torque, propulsion pressure, reverse pressure, propulsion speed, and lifting speed can be adjusted at any time during operation. This flexibility allows the rig to adapt instantly to changing drilling tool conditions and meet the requirements of various construction techniques.

• 【Please note】The prices shown are not final. This product offers customization services, with various styles and accessories available. Prices vary depending on configuration. For more details or inquiries, please leave a message before purchasing or contact the manufacturer directly via WhatsApp at +86 13613852712. Please do not place an order directly. We'd love to serve you.
• 【Durable Field Performance】Built with sturdy materials, it can withstand the harsh conditions of outdoor and remote job sites, providing reliable service for long-term field exploration and drilling operations.
• 【Field-Focused Applications】It is perfect for geological exploration, mining site investigation, geotechnical testing and subsurface core sampling, catering to the needs of field technicians and exploration professionals.
• 【Intact Core Preservation】The hydraulic control ensures gentle and steady core extraction, helping to preserve the integrity of samples for accurate geological analysis and project planning.
• 【Long-Lasting Field Durability】Constructed to withstand the rigors of outdoor and remote operations, it offers reliable performance for long-term use in various field exploration and drilling scenarios.
